Parker派克TDA系列比例節流閥是由三級組成。閥錐由座閥結構的伺服閥芯進行先導控制。帶力反饋的比例電磁閥調節伺服閥芯的位置。因此閥錐的位置不會受到壓差的影響。壓差可以達到最大的工作壓力。先導控制的控制油流量大約為1 l/min。工作的最低壓力為3 bar。控制壓力必須大于A口處系統壓力的25％。流量的調節精度為0.5％。由于流量特性曲線是漸進的，因此當小流量時，該調節精度在漸進區域內被改善為0.25％。整個行程的調節時間大約為25ms。當油液由B向A流動時，在關閉的初始位置上由B向A不能有泄漏。在該初始位置上先導控制不需要控制油?；赜涂赥的壓力不能高于100 bar。

TDA系列電液比例節流閥單元

電液比例節流閥單元 -TDA系列

經久考驗的二通比例節流閥單元系列TDA具有對大流量進行精細節流控制的特點, 用于大流量液壓系統的高效、可靠的操控。

派克的TDA系列二通電液比例節流閥單元具有一些優異的特性, 如高分辨率及重復精度, 以及令人滿意的性?xún)r(jià)比和經濟的運行成本。TDA 閥用于大流量的控制, 結合使用 PCD00A-400 型數字功率放大器, 閥的工作參數可進行存儲、修改和復制。

市場:

? 工業設備

? 注塑成型機

特點/優勢:

? 經久考驗的, 極其堅固的設計, 插件安裝孔及安裝界面符合 ISO 7368 - 確?？煽康墓ぷ?/p>

? 8 檔規格: NG16 至 NG100 - 規格尺寸范圍廣, 適用于絕大部分液壓系統

? 先導油液需求少 - 功效高

? 高分辨率及重復精度 - 對產品精度至關重要

? 供貨周期短 - 無需庫存

? F具有失電故障安全功能

? 油口 B 至 A 無泄漏

? 壓差可能高達 350 bar

應用領域:

? 通用壓機

? 壓鑄機

? 注塑成型機

技術功能:

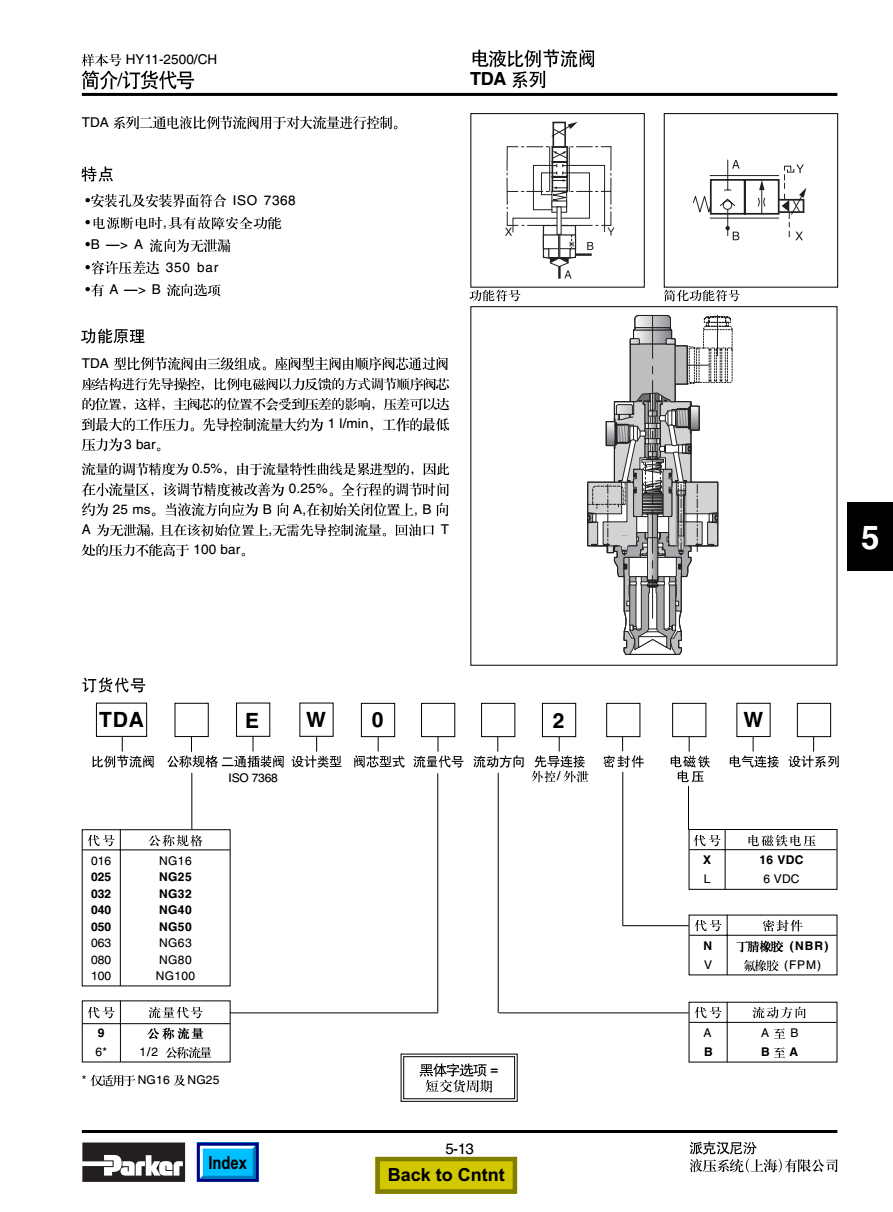

TDA 比例節流閥單元為3 級控制結構: 第一級為比例電磁鐵操控的閥芯/閥套結構的先導級, 第二級由控制彈簧和順序閥芯構成, 主級則為閥芯、閥套組成的二通插件。比例電磁鐵推動先導閥芯與控制彈簧的反饋力相平衡, 并由此控制順序閥芯的位置, 而主級閥芯則跟隨著順序閥芯動作, 從而控制油口 B 至油口 A (油口 A 至 B 為可選項) 的開口面積與電磁鐵的輸入電流成正比。主閥芯的位置與A、B 口的壓差無關, 因此, 該壓差可與最高工作壓力一樣高。

性能特點

安裝方式 二通插件

操作樣式 先導

啟動 比例

系列型號 節流閥

重量 (KG) 3.1至87,取決于尺寸

TDA080EW09A2NLW21

TDA025EW09B2NXW

TDA032EW09B2NXW

TDA025EW09B2NXW20

TDA032EW09B2NXW21

TDA050EW09B2VXW20

TDA050EW09B2NXW20

TDA050EW09B2NLW20

TDA050EW09A2NXW20

TDA050EW09A2NLW20

TDA080EW09B2NLW21

TDA080EW09B2NXW21

TDA040EW09B2NXW20

TDA040EW09B2VXW20

TDA040EW09B2NLW20

TDA040EW09B2VLW20

TEA080EW09B2NLWJ21X824

TEA080EW09B2NLWJ21

TEA080EW09B2NXWJ21

TDA040EW09A2NXW20

TDA040EW09A2VXW20

TDA040EW09A2NLW20

TEA050EW09B2VXWJ22

TEA050EW09B2NXWJ22

TEA050EW09B2VLWJ22

TEA050EW09B2NLWJ22X824

TEA050EW09B2NLWJ22

TEA050EW09B2NLWU22

TDA032EW09B2VXW20

TEA050EW09A2NXWJ22

TEA080EW09B2NLWJ21X683

TDA032EW09B2NXW20

TEA050EW09A2NLWJ22

TDA032EW09B2NLW20

TEH050EL09B2N22X29

TEA063EW09B2NLWJ21X824

TEA063EW09B2NXWJ21X793

TDA100EW09A2NXW21

TEA063EW09B2VLWJ21

TEH032EL09B2NWJ22

TEH025EL09B2NWJ22

TEA063EW09A2NLWJ21

TEH025EL09B2NWG22

TEH025EL09B2NWU22

TEA063EW09B2NLWJ21

TEA063EW09B2NXWJ21

TEH040EL09B2N22X29

TEA040EW09B2NXWJ22

TEH050EL09B2NWJ22

TEA040EW09B2NLWJ22

TEA040EW09B2VLWJ22

TEH050EL09B2NWU22

TDA100EW09B2NLW21

TDA100EW09B2NXW21

TDA063EW09B2VLW21

TDA063EW09B2VXW21

TDA063EW09A2NLW21

TDA063EW09A2NXW21

TEH050EL09A2NWJ22

TEA040EW09A2NLWJ22

TDA063EW09B2NLW21

TDA063EW09B2NXW21

TEH040EL09B2NWJ22

V-TDADV1007P04LAF

TEA025EW09B2NXWJ22

TDA080EW09A2NXW21

TDA080EW09A2NLW21

TEA100EW09A2NLWJ21

TEA032EW09B2NXWJ22

TEA025EW09B2NLWJ22

TDL063EH99B2NB041

TDL063EH99B2NE041

TEA032EW09B2NLWJ22

TEA100EW09B2NLWJ21

TDL100EH99B2NB041

TDL100EH99B2NE041

TDA032EW09A2NXW20

TDA025EW09B2VXW20

TDA032EW09A2NLW20

TEH080EL09B2NWJ21X824

TEA100EW09B2NLWJ21X683

TEH080EL09B2NWJ21

TEH063EL09B2NWJ21

TEH100EL09A2NWJ21

TDA025EW09B2NXW20

TDA025EW06B2NXW20

TEH063EL09B2NWU21

TDA016EW09B2VXW20

TEAPV1007P04MA

TDL050EH99B2NB041

TDA025EW09B2NLW20

TDL050EH99B2NE041

TDA025EW06B2NLW20

TDA016EW09B2NXW20

TDA016EW06B2VXW20

TDL080EH99B2NB041

TDA016EW06B2NXW20

TDA016EW09B2NLW20

TDA016EW06B2NLW20

TDA025EW09A2VXW20

TEA032EW09A2NLWJ22

TDADV1007P04LA

TDA025EW09B2VXW20X993

TDA025EW09A2NXW20

TDA025EW06A2NXW20

TDA025EW09A2NLW20

TDADV1007P04MA

TDL040EH45B2NB041

TDL040EH99B2NB041

TDA016EW09A2NXW20

TDA016EW09A2NLW20

TEH080EL09A2NWJ21

TDA016EW29B2NXW20

TEH100EL09B2NWJ21

TDAEB5P20 ADAPTER

TDAEX5P20 ADAPTER

TDAEV1007P10LAF

TDA040EW09B2NLE20-ATEX

TDA016EW49B2NXW20
